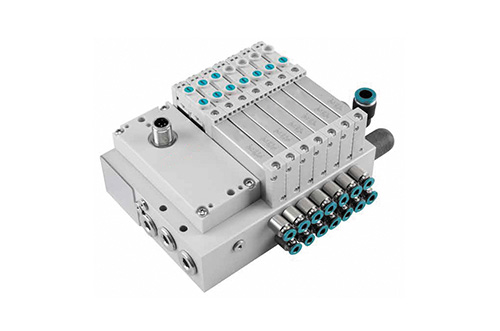

Valve Terminals - FFD Fieldbus Valve Terminals
Specifications
| Number of sites | 4, 5, 6, 7, 8, 9, 10, 12, 16, 20, 24 |
|---|---|
| Electrical connections | D-SUB25 Multi-pin, IO-Link, ProfiNET, EtherCAT, EtherNET/IP, CC-Link IE Field Basic |
| Voltage | 24 VDC ± 10% |
| Power consumption | Single coil instantaneous maximum 1.2 w |
| Traffic | Maximum 600 L/min ( according to valve type ) |
| Work interface | 10 mm: Air inlet = Exhaust port = G1/4" Working port = M7*1 14 mm: Air inlet = Exhaust port = G1/4" Working port = G1/8" |
| Work pressure | Reference catalog FFDF solenoid valve specifications |
| Pilot pressure | Reference catalog FFDF solenoid valve specifications |
