2 Way, 2 Position Solenoid Valves

Fonray provides a number of solenoid valves including 2 way solenoid valves and 2 position solenoid valves. We divided our valves into two types, piston direct drive type and membrane type. The valves sizes are from 1/8 inch to 4 inch, and they could sustain the operating pressure from 5 kg to 50 kg. Moreover, we also provide high pressure and high temperature solenoid valve.

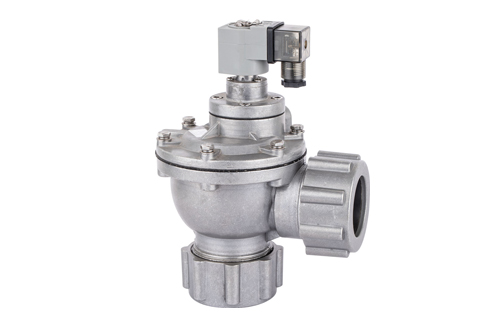

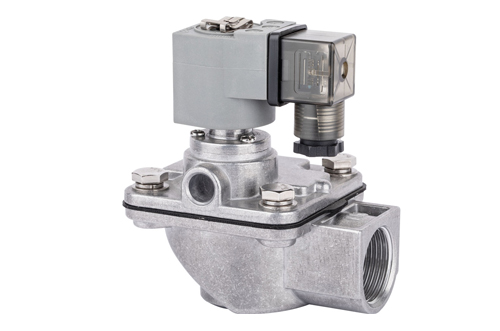

FSG-Z Electromagnetic Pulse Valve FSG-Z Electromagnetic Pulse Valve FSG-Z Electromagnetic Pulse Valve

2 Way, 2 Position Solenoid Valves - FSG-Z Electromagnetic Pulse Valve

Online Inquiry PDF

Specifications

Model No FSG-Z-15 FSG-Z-25 FSG-Z-35 FSG-Z-40S FSG-Z-50S FSG-Z-62S FSG-Z-76S
FSG-Z-20A FSG-Y-50S FSG-Y-62S FSG-Y-76S FSG-Y-89S FSG-Z-25DD FSG-Z-45DD
Working Pressure 0.1 ~ 0.86 Mpa ( recommend 0.2 ~ 0.6 MPa )
Working Medium Clean, dry compressed air
Voltage AC110V / AC220V / DC24V
Power 24W / 24VA / 12.5VA
Ambient
Temperature 		1
-25°C ~ 100°C
-13F ~ 212°F
2
-25°C ~ 230°C
-13°F ~ 446°F
Relative Humidity < 85%
Protection Level IP65
Diaphragm Life 1 Million cycles or five years

Remarks
1. Solenoid pulse valve / pressure collecting valve and pneumatic valve can be equipped with silencer.
2. The electromagnetic pulse valve can be optionally equipped with a certified explosion-proof coil.
3. The size of the hose that can be connected to the pneumatic valve: ¢6. ¢8. ¢10 etc.
4. If customers have special requirements, the surface can be sprayed with PTFE anti-corrosion
treatment.
