Pneumatic Press

Fonray's pneumatic punches use air cylinder as power executive unit, so it moves smoothly and reliably. The cycle of auto-punch can be adjusted and it works automatically and continuously through electronic controller, applicable to the field of electromechanical integration.

Pneumatic Press - APP Series PunchPneumatic Press - APP Series Punch

Pneumatic Press - APP Series Punch

Online Inquiry PDF

Specifications

Model Stength Stroke
( mm ）		 Bore of Cylinder
（ mm )		 Port Size Stroke Regulated
（ mm )		 Control Form

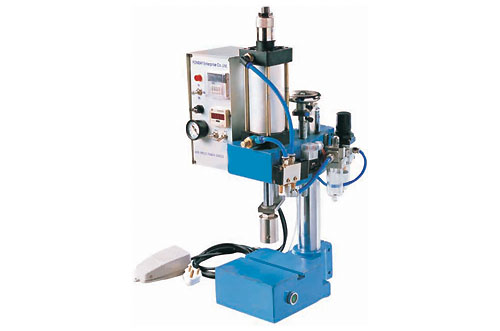

APP-100A 500Kg 100 100 3/8PT 30 Hand Control,
Foot Pedal
APP-63A 200Kg 100 63 1/4PT 30
APP-100E 500Kg 100 100 3/8PT 30 Auto,
Push-Button,
Foot Pedal
APP-63E 200Kg 100 63 1/4PT 30

Model Max. Working Height
(Adjustable)		 Cylinder Type Cylinder Regulated Stroke Working Area Power Operating Pressure

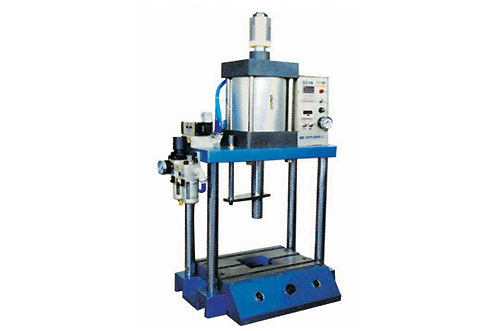

APP-125E 302mm Φ 125x100 mm Standard 25mm
Select 50mm		 350x240mm AC110/
220V
50/60Hz		 0.4~0.7MPa
APP-160E Φ 160x100 mm
