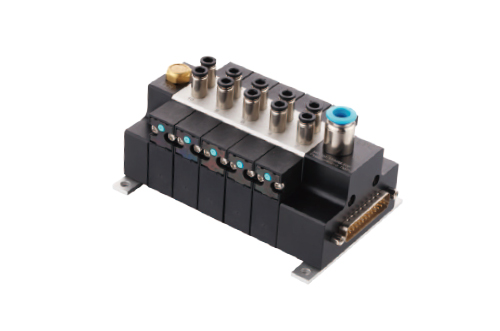

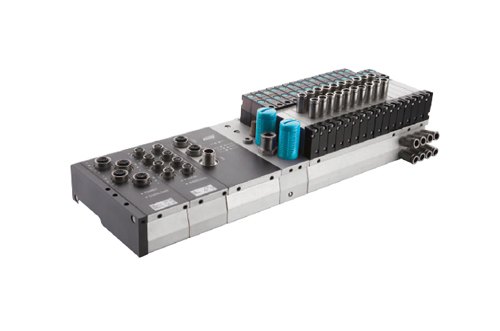

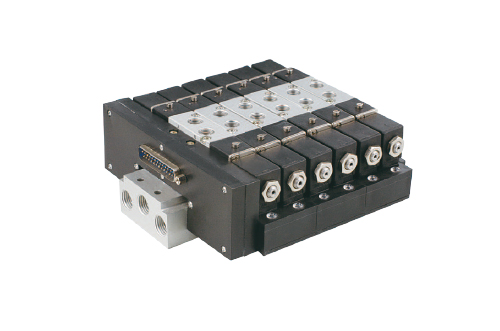

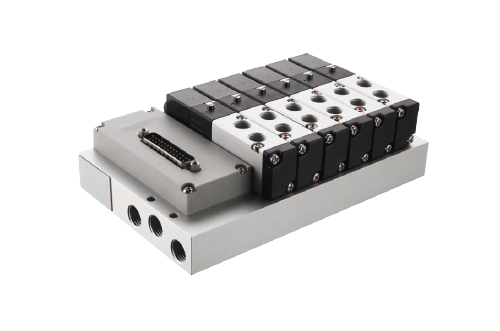

FCS Integrated Valve
Performance characteristics
1. The air supply and exhaust ports are arranged centrally and the volume is compact
2. Pneumatic and electric control components have been tested and tested to improve reliability
3. Adopt 25-DSUB interface, save wiring time and effort
4. Overall achieve IP65 protection level, can be applied to complex environments
5. According to the customer's functional requirements, two-bit five-way single and double electric control and three-bit five-way mixed installation can be realized
Specifications
| Type | FCS100 | ||
|---|---|---|---|
| Number of positions | Two five-way single electric control |
Two five-way dual electric control |
Three-position five-way |
| Effective cross-sectional area | 12 mm² (CV = 0.67) | 9 mm² (CV = 0.5) | |
| Take over caliber | Intake = Outlet = Exhaust = G1/8″ | ||
| Working medium | 40 micron filtered air | ||
| Action method | Internal pilot | ||
| Use pressure | 0.15～0.8 MPa | ||
| Maximum pressure | 1.2 MPa | ||
| Operating temperature | -20～70℃ | ||
| Voltage range | ± 10% | ||
| Power consumption | AC: 2.8 VA DC: 2.8 W | ||
| Insulation and protection grade | Class F. IP65 | ||
| Maximum operating frequency | Five times per second | ||
| Shortest excitation time | 0.05 seconds | ||
