Solenoid Valves

We produce various types of pneumatic / air solenoid valves. One type of our high pressure solenoid valves has working maximal pressure resistance range from 11 kg to 40 kg, and the other type which has maximal acting times from 5 times up to 200 times. We also provide coils of low electric current, and all of our seal rings are made in Japan. If you'd like to inquire about our solenoid valves, please contact us directly.

FEL10 Miniature Solenoid Valve FEL10 Miniature Solenoid Valve FEL10 Miniature Solenoid Valve FEL10 Miniature Solenoid Valve FEL10 Miniature Solenoid Valve

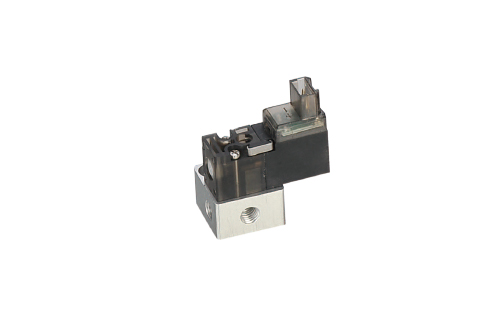

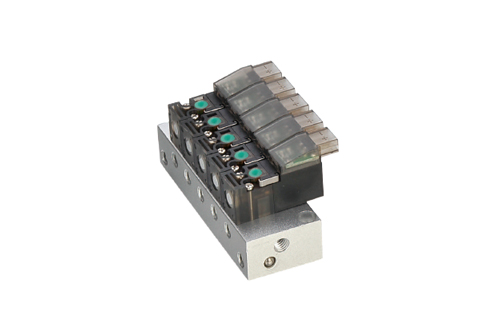

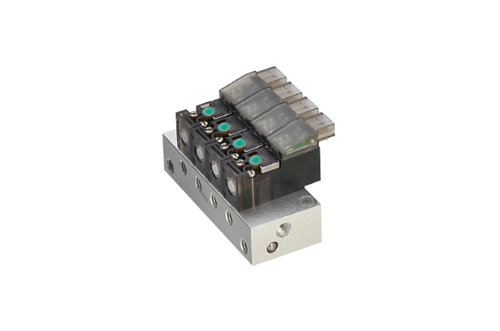

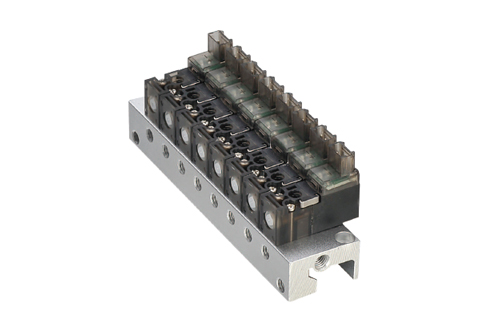

FEL10 Miniature Solenoid Valve

3D_Host Online Inquiry PDF

Performance characteristics

1. The air supply and exhaust ports are arranged centrally and the volume is compact
2. Pneumatic and electric control components have been tested and tested to improve reliability
3. Adopt 25-DSUB interface, save wiring time and effort
4. Overall achieve IP65 protection level, can be applied to complex environments
5. According to the customer's functional requirements, two-bit five-way single and double electric control and three-bit five-way mixed installation can be realized

Specifications

Types FEL10
Types of 3/2 normally closed
Use fluid Air, inert gas
Environment and fluid temperature -10℃ ~ +75℃
Working pressure 0 ~ 7bar
Valve port diameter Φ0.7mm
P→A CV:0.008
b:0.11
A→ R CV:0.015
b:0.35
Give oil No need
