Standard Cylinders - Electronic Sensor / Fixed Steel Band
Specifications

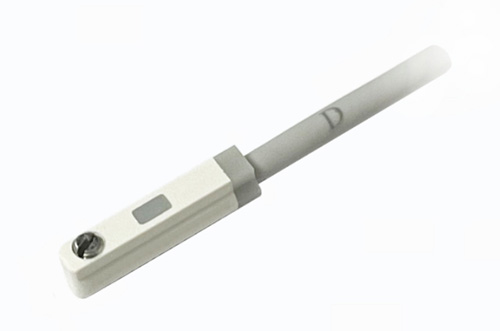

| Item | FRY-DMS : Standard Type Electronic Sensor | ||
|---|---|---|---|
| Wiring Method | Two-wire | Three-wire NPN | Three-wire PNP |
| Operating Voltage Range | 5～30V DC | 5～30V DC | |
| Max Switch Current | 100 mA max. | 200 mA max. | |
| Contact Capacity ( Note 1 ) |
3W max. | 6W max. | |
| Current Consumption | - | 6mA @ 24V DC max. | |
| Internal Voltage Drop | 3.5V max. | 0.5V @ 200mA max. | |
| Leakage Current | 0.1mA max. | 0.01mA max. | |
| Max Switching Frequency | 1000Hz max. | ||
| Shock Resistance ( Note 2 ) |
50G | ||
| Protection Circuit | Reverse Polarity Protection, Surge Absorption Protection | ||
| Operating Temperature Range |
-10℃～70℃ | ||
| Protection Structure | IEC 60529 IP68 | ||
| Standards | CE Certification, RoHS | ||
Notes :
1. Do not exceed the contact capacity ( P = V × I ).
2. Sine wave / X, Y, Z 3-axis / 3 times per axis / each time 11 ms.
3. Recommended minimum bending radius for flexible cables is 21 mm.
4. Tightening torque for DMSE series is 0.55 Nm.

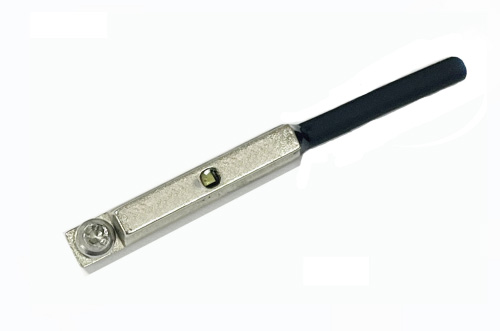

| Item | FRY-EMS : Miniature Type Electronic Sensor | ||
|---|---|---|---|
| Wiring Method | Two-wire | Three-wire NPN | Three-wire PNP |
| Operating Voltage Range | 5～30V DC | 5～30V DC | |
| Max Switch Current | 100 mA max. | 200 mA max. | |
| Contact Capacity ( Note 1 ) |
3W max. | 6W max. | |
| Current Consumption | - | 6mA @ 24V DC max. | |
| Internal Voltage Drop | 3.5V max. | 0.5V @ 200mA max. | |
| Leakage Current | 0.1mA max. | 0.01mA max. | |
| Max Switching Frequency | 1000Hz max. | ||
| Shock Resistance ( Note 2 ) |
50G | ||
| Protection Circuit | Reverse Polarity Protection, Surge Absorption Protection | ||
| Operating Temperature Range |
-10℃～70℃ | ||
| Protection Structure | IEC 60529 IP68 | ||
| Standards | CE Certification, RoHS | ||
Notes :
1. Do not exceed the contact capacity ( P = V × I ).
2. Sine wave / X, Y, Z 3-axis / 3 times per axis / each time 11 ms.
3. Recommended minimum bending radius for flexible cables is 21 mm.

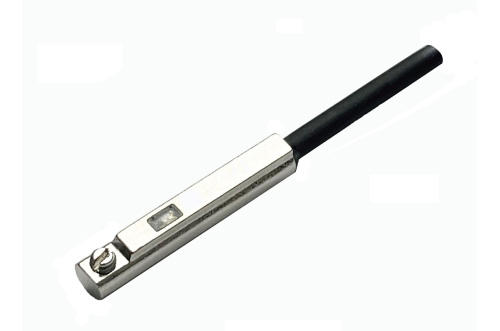

| Item | FRY-PU : Corrosion-Resistant Reed Switch / Electronic Sensor | |||
|---|---|---|---|---|
| Wiring Method | Two-wire Reed Switch |
Two-wire Electronic |
Three-wire Electronic NPN |
Three-wire Electronic PNP |
| Operating Voltage Range | 5～120V DC/AC | 5～30V DC | 5～30V DC | |
| Max Switch Current | 100 mA max. | 100 mA max. | 200 mA max. | |
| Contact Capacity ( Note 1 ) |
10W max. | 3W max. | 6W max. | |
| Current Consumption | - | - | 6mA @ 24V DC max. | |
| Internal Voltage Drop | 2.5V max. | 3.5V max. | 0.5V @ 200mA max. | |
| Leakage Current | - | 0.1mA max. | 0.01mA max. | |
| Max Switching Frequency | 200Hz max. | 1000Hz max. | ||
| Shock Resistance ( Note 2 ) |
30G | 50G | ||
| Protection Circuit | None | Reverse Polarity Protection, Surge Absorption Protection |
||
| Operating Temperature Range |
-10℃～70℃ | |||
| Protection Structure | IEC 60529 IP68 | |||
| Standards | CE Certification, RoHS | |||
Notes :
1. Do not exceed the contact capacity ( P = V × I ).
2. Sine wave / X, Y, Z 3-axis / 3 times per axis / each time 11 ms.
3. Recommended minimum bending radius for flexible cables is 21 mm.

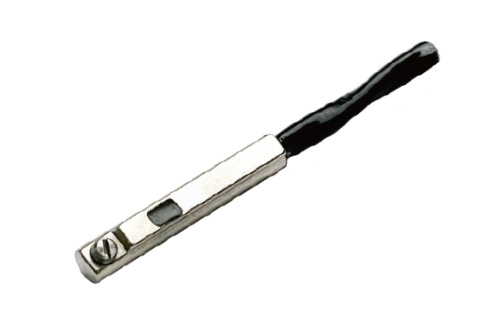

| Item | FRY-XH : High and Low Temperature Resistant Reed Switch Sensor |
|---|---|
| Wiring Method | Two-wire |
| Operating Voltage Range ( Note 3 ) |
5～120V DC/AC or 5～240V DC/AC |
| Max Switch Current | 500 mA max. |
| Contact Capacity ( Note 1 ) |
10W max. |
| Current Consumption | - |
| Internal Voltage Drop | 0.5V max. |
| Leakage Current | - |
| Max Switching Frequency | 200Hz max. |
| Shock Resistance ( Note 2 ) |
30G |
| Protection Circuit | None |
| Operating Temperature Range |
-40℃～150℃ |
| Protection Structure | IEC 60529 IP68 |
| Standards | Temperature Resistance Report, CE Certification, RoHS |
Notes :
1. Do not exceed the contact capacity ( P = V × I ).
2. Sine wave / X, Y, Z 3-axis / 3 times per axis / each time 11 ms.
3. FRY-XH-07 series is rated for 5~120V DC/AC, while FRY-XH-20 / 32 / 82 series are rated for 5~240V DC/AC.
| Item | FRY-S : Flexible Electronic Sensor | ||
|---|---|---|---|
| Wiring Method | Two-wire | Three-wire NPN | Three-wire PNP |
| Operating Voltage Range | 5～30V DC | 5～30V DC | |
| Max Switch Current | 100 mA max. | 200 mA max. | |
| Contact Capacity ( Note 1 ) |
3W max. | 6W max. | |
| Current Consumption | - | 6mA @ 24V DC max. | |
| Internal Voltage Drop | 3.5V max. | 0.5V @ 200mA max. | |
| Leakage Current | 0.1mA max. | 0.01mA max. | |
| Max Switching Frequency | 1000Hz max. | ||
| Shock Resistance ( Note 2 ) |
50G | ||
| Protection Circuit | Reverse Polarity Protection, Surge Absorption Protection | ||
| Operating Temperature Range |
-10℃～70℃ | ||
| Protection Structure | IEC 60529 IP68 | ||
| Standards | CE Certification, RoHS | ||
Notes :
1. Do not exceed the contact capacity ( P = V × I ).
2. Sine wave / X, Y, Z 3-axis / 3 times per axis / each time 11 ms.
3. Recommended minimum bending radius for flexible cables is 21 mm.
