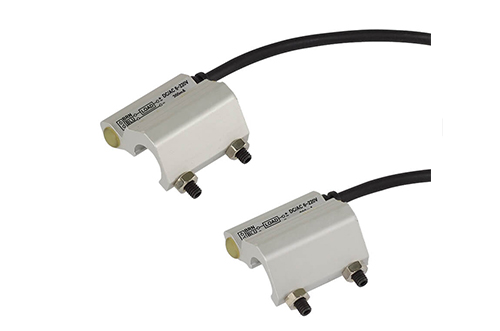

Sensor Switch - LN01A
Model:LN01A/ LN02A /LN03A, Assembling style: MHBS / MHBD, Voltage range: 5~240V DC/AC.
Specifications
| Wiring method | LN0*A : 2 wire, LN0*A-N, LN0*A-P : 3 wire |
|---|---|
| Switching logic | LN0*A : N.O., LN0*A-N, LN0*A-P : Without contact, N.O. |
| Switch type | LN0*A : Reed switch, LN0*A-N : NPN current sinking, LN0*A-P : PNP current sourcing |
| Operating voltage | LN0*A : 5~240V DC/AC, LN0*A-N, LN0*A-P : 10~30V DC |
| Switching current | LN0*A : 100mA max. LN0*A-N, LN0*A-P : 200mA max. |
| Switching rating | LN0*A : 10W max. LN0*A-N, LN0*A-P : 6W max. (※1) |
| Current consumption | LN0*A-N, LN0*A-P : OFF : 7mA(24V)/ ON : 20mA(24V) max. |
| Voltage drop | LN0*A : 3V max. LN0*A-N, LN0*A-P : 0.5V@200mA max. |
| Indicat | LN0*A, LN0*A-N : Red LED, LN0*A-P : Green LED |
| Cable | LN0*A : φ3.3,2C,PVC ; LN0*A-N, LN0*A-P : φ3.3,3C,PVC |
| Temperature range | －10℃~＋70℃ ( No freezing ) |
| Enclosure classification | IEC 60529 IP67 |
| Protection circuit | LN0*A : 1, LN0*A-N, LN0*A-P : 3,4 (※2) |
| Remark | ※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur. ※2 : 1=None / 2=Short-circuit / 3=Power source reverse polarity / 4=Surge suppression. |
