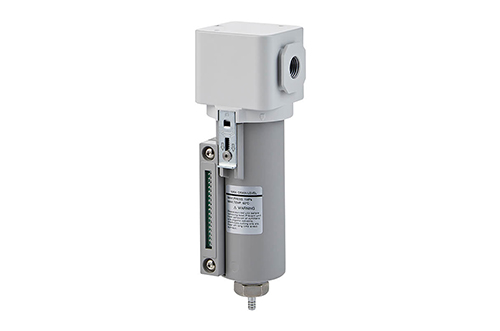

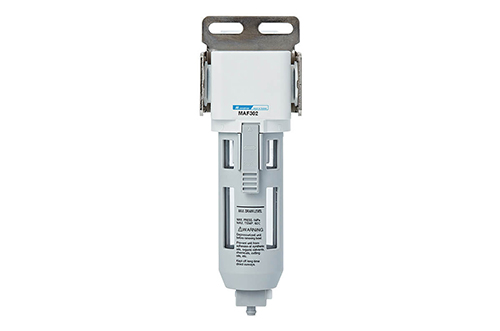

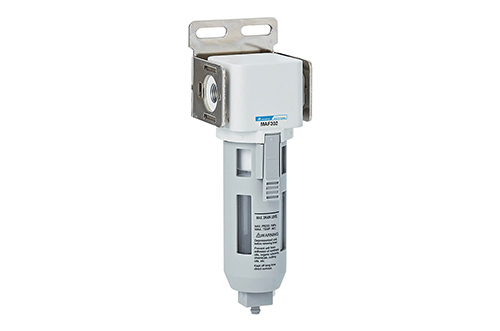

Filter - MAF302
Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1 MPa, Proof pressure : 1.5 MPa
Features

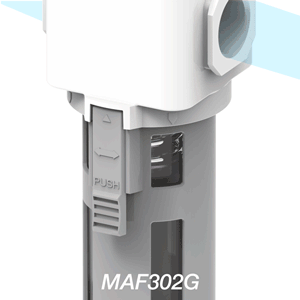

Water separator ( G )
Water droplets are removed by centrifugal force. This product can remove water droplets in the compressed air, but cannot remove moistur content ( water vapor ) .
Filter element is not needed. Water droplet removal ratio : 99%.
Specifications
| Bore No. | 8A, 10A, 15A |
|---|---|
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：5μm Option：40μm |
| Drain capacity | 35 cm3 |
| Weight | 335 g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. |
