FR Unit

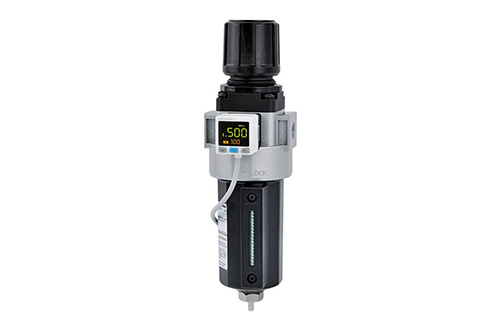

FR Unit - MAFR401

Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1.5 MPa, Proof pressure : 2 MPa

Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※)	0.05 ~ 1.5 MPa
Regulated pressure range	Standard Type：0.1 ~ 0.85 MPa , High pressure type : 0.1 ~ 1.5 MPa
Proof pressure	2 MPa
Ambient temperature	－5 ~ ＋60℃ ( No freezing )
Filter element	Standard：40μm Option：5μm
Drain capacity	70 cm³
Attachment	Pressure Gauge ( PG-20 ), L-type bracket
Weight	800 g
Remark	※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.OptionAuto Drain Valves ( FMRF300 ), Operating pressure range 0.15 ~ 1 MPa。
