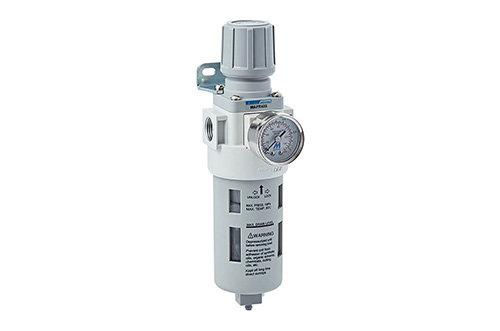

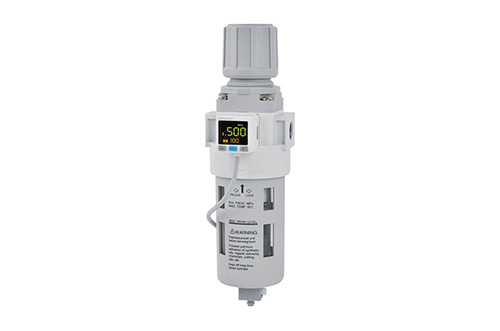

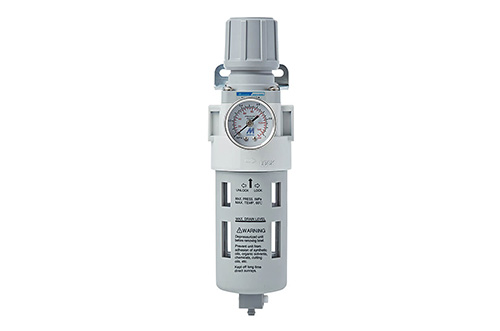

FR Unit - MAFR403
Port size : 1/4, 3/8, 1/2, Operating pressure range : 0.05 ~ 1 MPa, Proof pressure : 1.5 MPa
Specifications
| Bore No. | 8A, 10A, 15A |
|---|---|
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05 ~ 1 MPa |
| Regulated pressure range | 0.1 ~ 0.85 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Filter element | Standard：40μm Option：5μm |
| Drain capacity | 75 cm3 |
| Attachment | Pressure Gauge ( PG-20 ), L-type bracket |
| Weight | 620 g |
| Remark | ※1.Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2.OptionAuto Drain Valves ( FMRF300 ), Operating pressure range 0.15 ~ 1 MPa。 |
