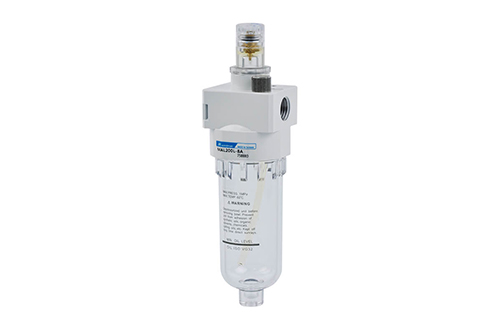

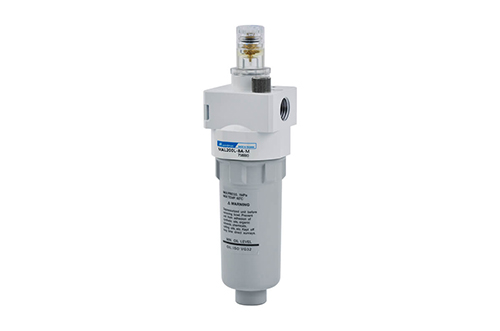

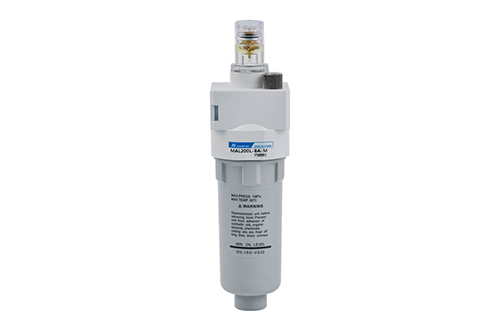

Lubricator - MAL200L
Port size: 1/8, 1/4, Max. operating pressure: 1 MPa,Proof pressure: 1.5 MPa.
Specifications
| Bore No. | 6A, 8A |
|---|---|
| Port size | 1/8, 1/4 |
| Medium | Air |
| Max. operating pressure | 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~ ＋60℃ ( No freezing ) |
| Lubricating oil capacity | 35c.c |
| Min. flow for oil drip | 6A : 35 l/min, 8A : 50 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Weight | 130 g |
