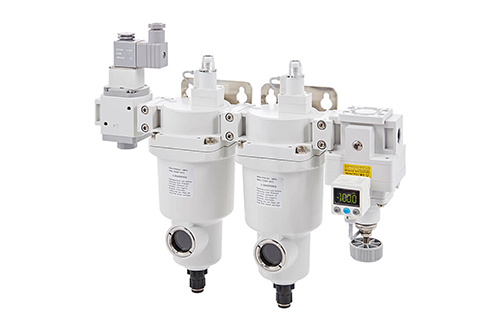

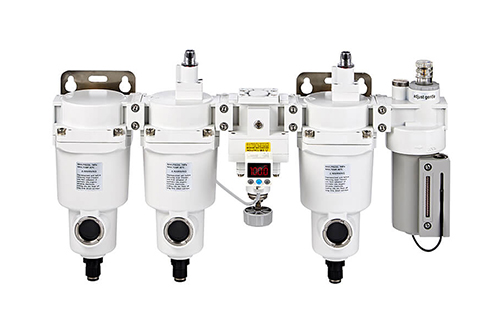

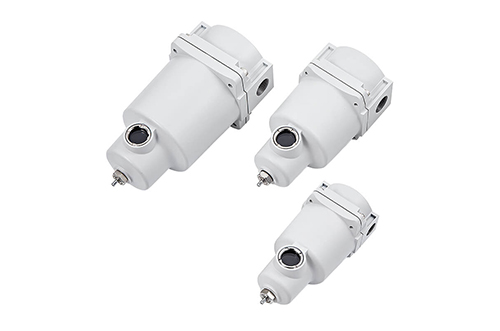

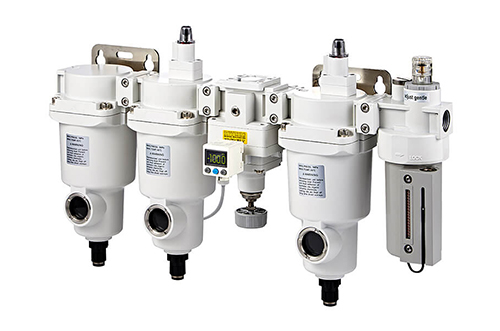

Air / Mist / Micro Mist Filter - MAM Precision Filter ‧ Water Separator
Body size : 25, 35, 45, 55, Port size : 1/4, 3/8, 1/2, 3/4, 1
Operating pressure range : 0.05~1 MPa, Proof pressure : 1.5 MPa, Filter element - MAMG : Water separator ( Removal rate 99% ) / MAMB : 3μm / MAMD : 0.3μm / MAMM : 0.01μm / MAMF : 0.01μm + Deodorization.
Specifications
| Body size | 25, 35, 45, 55 |
|---|---|
| Bore No. | 8A, 10A, 15A, 20A, 25A |
| Port size | 1/4, 3/8, 1/2, 3/4, 1 |
| Medium | Air |
| Operating pressure range ( ※ ) | 0.05 ~ 1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5 ~＋60℃ ( No freezing ) |
| Filter element | MAMG : Water separator ( Removal rate 99% ) MAMB : 3μm MAMD : 0.3μm MAMM : 0.01μm MAMF : 0.01μm + Deodorization |
| Accessories | L type bracket |
| Sensor switch | RDFE ( V ) |
| Weight | 610 g, 870 g, 1450 g, 2250 g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. OptionAuto Drain Valves ( FMRF300 ) , Operating pressure range 0.15 ~ 1 MPa。 |
