Features

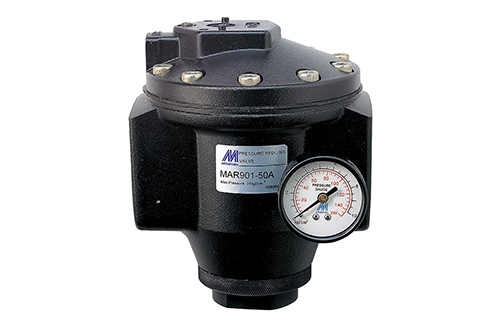

MAR901 ( Pilot operated ) can be installed at any point in the compressed air system without regard to accessibility ensuring accurate pressure regulation over a wide range of air flows upto 56640 l/min.
Specifications
| Bore No. | 50A |
|---|---|
| Port size | 2 |
| Medium | Air |
| Max. operating pressure | 3.1 MPa |
| Regulated pressure range | Upto 1.75 MPa ( with the help of a pilot regulator ) |
| Ambient temperature | 0℃~＋80℃ ( No freezing ) |
| Flow(※) | 59000 l/min |
| Attachment | Pressure Gauge ( PG-50 ) |
| Standard nominal flow rate(※) | 59000 l/min |
| Weight | 3055 g |
| Remark | ※Flow is at 1 MPa supply pressure and 0.1 MPa purssure drop of 0.6 MPa of secondary pressure. |
