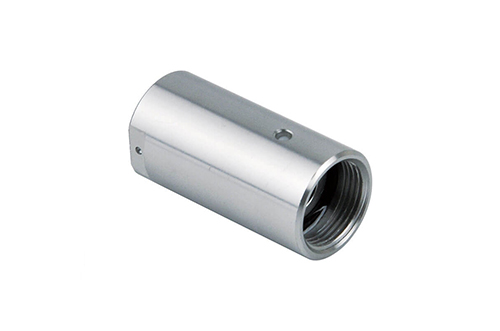

Hand Valve - MVHF-AP Miniature Pilot Actuator
Single action, spring erturn miniature air pilot actuator,Input pressure:Vacum to 150 psig max.
Specifications
| Port size | MVHF-AP3→10-32, MVHF-AP6A→G1/8 |
|---|---|
| Input pressure | 150 psig max |
| Temperature range | 32℉~230℉ |
| Mounting | 15/32-32 female thread to mount to miniature valves and components |
| Construction | Body : aluminum alloy, Springs : stainless steel, Seals : buna N rubber, Piston : aluminum |
| Force factor | .1 |
| Weight | 22g |
| Remark | Port thread NPT.are also available. |
