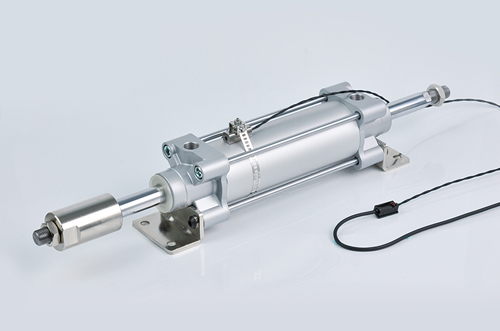

Sensor Switch - RCV
Assembling style: MCQVS, Wiring method: 2 wire, AISI 316 stainless steel Fits the chemical, food and pharmaceutical environment. The switch holds up to corrosive enviroments, high temperature and shock.
Specifications
| Wiring method | 2 wire |
|---|---|
| Switching logic | SPST N.O. |
| Switch type | Reed switch |
| Operating voltage | 5~240V DC/AC |
| Switching current | 100mA max. |
| Switching rating | 10W max. (※1) |
| Voltage drop | 3.5V max. |
| Indicat | Red LED |
| Housing switch material | Sensor Switch : AISI 316, LED box : ABS |
| Cable | Teflon : φ4, L=4000mm, PVC : φ3, L=1000mm |
| Temperature range | －10℃~＋140℃ ( Sensor switch only ) |
| Enclosure classification | IEC 529 IP67 |
| Weight | 91g ( 2m Cable ) |
| Remark | ※1 : Warning: Never exceed rating ( watt = voltage × amperage ). Permanent damage to sensor will occur. |
