Vacuum Pad - VT Air Pincette

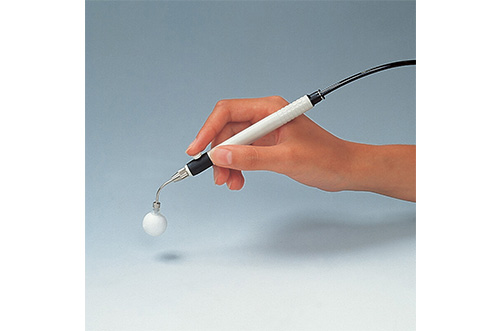

Fluid medium: Air. Operating pressure range: 0.15~0.7 MPa. The Air Pincette, incorporating a Vacuum Pad and Vacuum Generator in the pen-shaped body, serves well in the assembly operation of small parts.
Specifications
| Model | VTA | VTB |
|---|---|---|
| Medium | Air | |
| Operating pressure range | 0.15~0.7 MPa | |
| Rated supply pressure | 0.5 MPa | |
| Final vacuum | -85 kpa | -80 kpa |
| Nozzle dia. | ø0.5 mm | ø0.4 mm |
| Suction flow | 2 L/m [ ANR ] | |
| Operating temp. range | 0 ~ 60℃ ( No freezing ) | |
| Surface resistance | 104 ~ 108Ω ( Antistatic type only ) | |
| Air supply port （Applicable Tube dia.） |
ø4 mm | |
