Pneumatic Fittings

Fonray's pneumatic / air tubing fittings and pneumatic / air pipe fittings are made of high quality materials in order to increase their firmness. Our products are through special designs that can adapt PU, PE and nylon tube. The specifications are below, the operating medium of fittings can be oil, water, vacuum and air; the material of seal-ring is NBR; the pressure of endurance test could up to 50 kg and the working pressure is 11 kg.

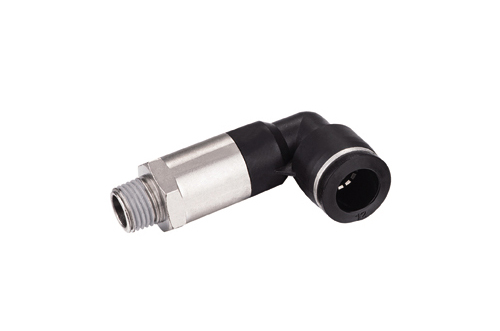

Pneumatic Fittings - EPLL Long ElbowPneumatic Fittings - EPLL Long Elbow

Pneumatic Fittings - EPLL Long Elbow

Online Inquiry PDF

Specifications

Model Fluid Applied Working -
pressure Range 		Operating
Temperature		 Max.
Pressure		 Adapted
Tube		 Material of
Seal Ring
EPLL4-M5 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL4-01
EPLL4-02
EPLL6-M5 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL6-01
EPLL6-02
EPLL6-03
EPLL6-04
EPLL8-01 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL8-02
EPLL8-03
EPLL8-04
EPLL10-01 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL10-02
EPLL10-03
EPLL10-04
EPLL12-02 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL12-03
EPLL12-04
EPLL16-02 Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11 kgf/cm²
( 0 ~ 1.1 mpa )		 -10 ~ 60°C 1.1 mpa PU tube
Nylon tube		 NBR
EPLL16-03
EPLL16-04
