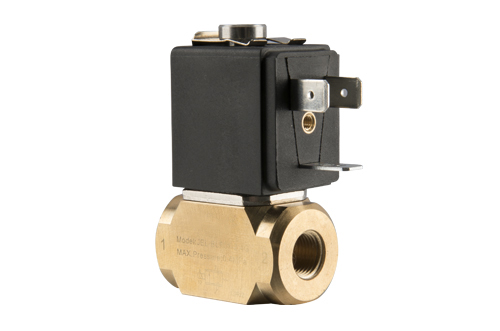

2 Way, 2 Position Solenoid Valves - FEL Proportional Solenoid Valve
Specifications
| Model | FEL-BLF01-1.6G-F05 |
|---|---|
| Fluid | Air or oxygen filtered through a 40 micron filter |
| Valve function | Two-position two-way |
| Pressure | 0 - 0.4 MPa |
| Stress resistant | 0.5 MPa |
| Flow characteristics | 45 L/min@2.5 bar |
| Current | 0~250 mA ( DC12V ) |
| Environment and fluid temperature | -5 ~ +80 °C ( but not frozen ) |
| Hysteresis | 10% F.S. |
| Repeatability | 3% F.S. |
| Material of main parts | Viton, brass |
Flow specification can be customized
