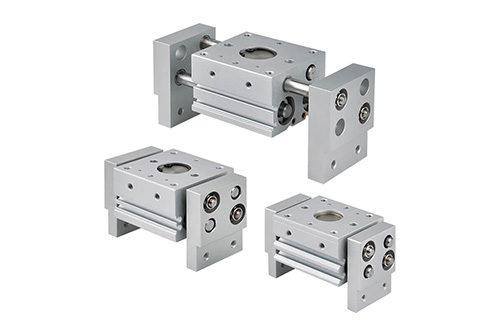

FHL2 Parallel Type Air Gripper Wide Type

Standard Cylinders - FHL2 Parallel Type Air Gripper Wide TypeStandard Cylinders - FHL2 Parallel Type Air Gripper Wide Type

Standard Cylinders - FHL2 Parallel Type Air Gripper Wide Type

Specifications

Bore size ( mm ) 10 16 20 25 32 40
Action Double acting
Fluid Air
Max. operating pressure ( Mpa )
{ kgf/cm² }
0.6 { 6.1 }
Min. operating pressure ( Mpa )
{ kgf/cm² }
0.15 { 1.5 } 0.1 { 1.0 }
Ambient and fluid temperature -10 ~ 60°C ( with no condensation )
Repeatability ( mm )  ±0.1
Holding power ( N )
{ kg }
14 { 1.4 } 45 { 4.6 } 74 { 7.5 } 131 { 13.4 } 228 { 23.4 } 396 { 40.4 }
Piping size M5×0.8 Rc1/8

Note : Under the pressure of 0.5 Mpa ( 5.1kgf/cm² ) and the holding point 40mm ( ∅10 ~ ∅25 ), 80 mm ( ∅32 / ∅40 )
