FAC - Filter Lubricator

Home > Products > Filter Regulator Lubricator (FRL) > Filter Lubricator > FAC

  • FAC - Filter Lubricator
  • FAC - Filter Lubricator
  • FAC - Filter Lubricator
Product Serial:

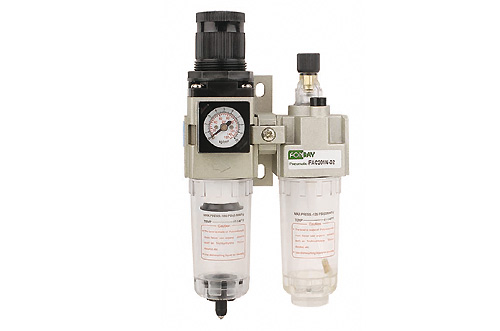

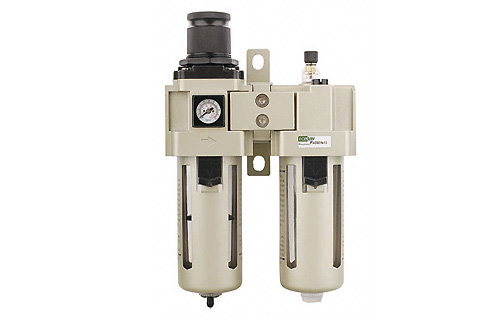

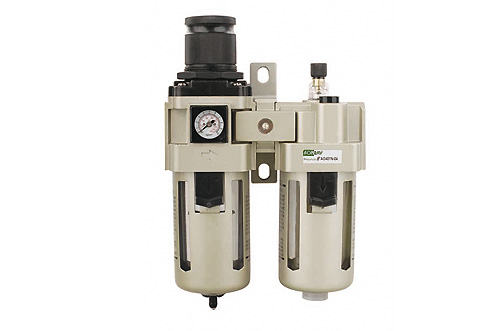

Filter Lubricator - FAC
Back Inquiry

Fonray provides 5 models of filter lubricator AC series such as FAC201N-01, 02, FAC301N-02, 03, FAC401N-03 , 04, FAC501N-06, 08, FAC5010-06, 08 and with different port size, max. flow rate, 5 µm (Polyester) 20 µm (Sintered Brass) of filtrations, 0.05~0.85 Mpa of working-pressure range. Please feel free to contact us for more information about filter lubricator AC products.

ModelPort Size
(G/PT)		Max. Flow
Rate(6bar)
(L/min)		Filtration
(µm)		Working-pressure Range
(Mpa)
FAC201N-01 、 02 1/8″ 、 1/4″ 500 5( Polyester)
20(Sintered Brass)		 0.05~0.85
FAC301N-02 、 03 1/4″ 、 3/8″ 1,700
FAC401N-03 、 04 3/8″ 、 1/2″ 4,000
FAC501N-06 、 08 3/4″ 、 1″ 5,000
FAC5010-06 、 08 3/4″ 、 1″ 5,000
PDF catalog
    • PDF
    • Bracket
Download 2D CAD file
    • FAC201N-02
    • FAC301N-03
    • FAC401N_-04
    • FAC501N-06
Download 3D CAD file
    • FAC2010-02DM
    • FAC201N-02
    • FAC301N-03
    • FAC301N-03D
    • FAC401N-04
    • FAC501N-06
