Pneumatic Fittings

Fonray's pneumatic / air tubing fittings and pneumatic / air pipe fittings are made of high quality materials in order to increase their firmness. Our products are through special designs that can adapt PU, PE and nylon tube. The specifications are below, the operating medium of fittings can be oil, water, vacuum and air; the material of seal-ring is NBR; the pressure of endurance test could up to 50 kg and the working pressure is 11 kg.

Pneumatic Fittings - EPCP Push-in AdapterPneumatic Fittings - EPCP Push-in Adapter

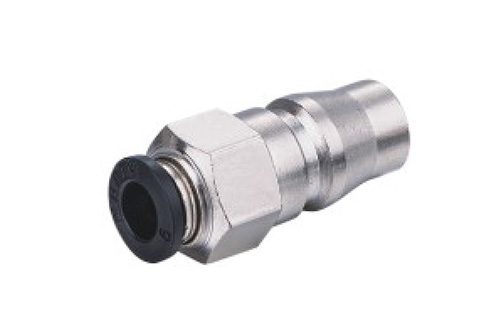

Pneumatic Fittings - EPCP Push-in Adapter

Online Inquiry PDF

Specifications

Model Fluid Applied Working -
pressure Range 		Operating
Temperature		 Max.
Pressure		 Adapted
Tube		 Material of
Seal Ring
EPCP4-P Air, vacuum,
water, oil
(use in no erodent
environment)		 0~11kgf/cm²
(0~1.1mpa)		 -10~60°C 1.1mpa PU tube
Nylon tube		 NBR
EPCP6-P
EPCP8-P
EPCP10-P
EPCP12-P
EPCP14-P
EPCP16-P
EPCP5/32-P
EPCP3/16-P
EPCP1/4-P
EPCP5/16-P
EPCP3/8-P
EPCP1/2-P
