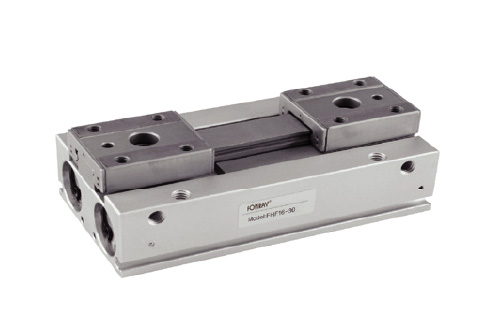

Standard Cylinders - FHF2 Low Profile Air Gripper
Specifications
| Bore size ( mm ) | 8 | 12 | 16 | 20 | 25 | ||
|---|---|---|---|---|---|---|---|
| Action | Double acting | ||||||
| Fluid | Air | ||||||
| Operating pressure range ( MPa ) | 0.15 ~ 0.7 | 0.1 ~ 0.7 | |||||
| Ambient and fluid temperature | -10 ~ 60℃ ( with no condensation ) | ||||||
| Repeatability ( mm ) | ±0.05* | ||||||
| Max. operating frequency ( c.p.m ) | Short stroke :120 Long stroke : 60 | ||||||
| Auto switch | contactless | 2-wire | M9B | ||||
| 3-wire NPN | M9N | ||||||
Note : This is value when no offset load is applied to the finger. When an offset load is applied to the finger,the max. value is ± 0.15 mm due to the influence of backlash of the rack and pinion.
