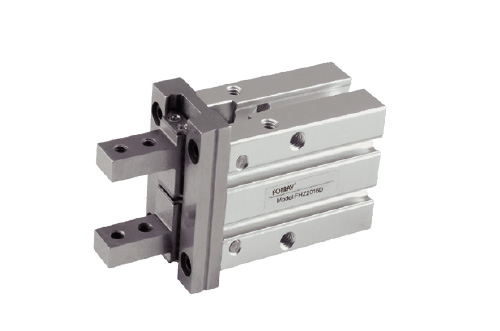

FHZ2 Parallel Type Air Gripper

Standard Cylinders - FHZ2 Parallel Type Air GripperStandard Cylinders - FHZ2 Parallel Type Air Gripper

Standard Cylinders - FHZ2 Parallel Type Air Gripper

Specifications

Bore size mm 6 10 16 20 25 32 40
Fluid Air
Operating pressure range Double acting Mpa 0.15 ~ 0.7 0.2 ~ 0.7 0.1 ~ 0.7 0.1 ~ 0.7
Ambient and fluid temperature -10 ~ 60°C ( with no condensation )
Repeatability 0.01 mm 0.02 mm
Max. operating frequency
( c.p.m )
180 60
Lubrication No need
Action Double acting·Single acting
Auto switch Contactless auto switch
Piping size M3×0.5 M5×0.8
